CyberPower UPS, ENERGY STAR certified

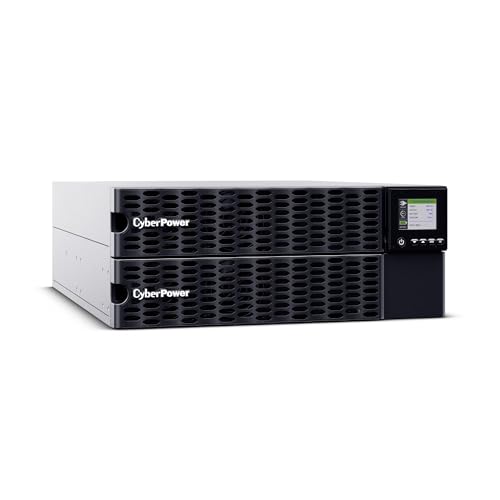

CyberPower OL10KRTHD
12 kVA / 10 kW double conversion UPS.
Capacity
12 kVA
10 kW real power
Topology
Double Conversion
Efficiency
94.6%
weighted, as tested
Runtime @ 50%
7 min
2 min at full load
A UPS has two ratings and the lower one is the limit. This unit is rated 12 kVA and 10 kW, so the equipment plugged into its battery outlets should draw no more than about 8,000 W if you want the usual 20% headroom. How to size a UPS.
Its weighted efficiency of 94.6% compares with a median of 95.0% across 58 certified units within 25% of its capacity. With nothing plugged in it still draws 87.7 W, about $100 a year at 13¢/kWh just to stand ready.
- Maker
- CyberPower
- Model
- OL10KRTHD
- Apparent power rating
- 12 kVA
- Real power rating
- 10 kW
- Power factor
- 0.83
- Topology
- Double Conversion
- Intended use
- Consumer, Commercial, Data Center
- Battery
- Valve Regulated Lead-acid Battery
- Runtime at 50% load
- 7 min
- Runtime at 100% load
- 2 min
- Battery warranty
- 3 yr
- Weighted efficiency
- 94.6%
- Efficiency at 25 / 50 / 75 / 100% load
- 93.5% / 94.8% / 94.6% / 94.4%
- Input power at no load
- 87.7 W
- Rack mountable
- Yes
- Rated input voltage
- 200-240 V
- Rated output voltage
- 200-240 V
- Connections
- Serial Port,Other,USB Port
- Size (H x W x D)
- 173 x 433 x 720 mm
- Maker take-back program
- Yes
- On the market since
- Aug 2022
- ENERGY STAR certified
- 6 Sep 2022
Certified under the same record
The maker lists these as the same machine or a variant of it: OL10KRTHDHW, OL10KRTHDHWTAA, OL10KRTHDHWTW, OL10KRTHDIEC, OL10KRTHDIECTAA, OL10KRTHDIECTW, OL10KRTHDSHW, OL10KRTHDSHWTAA, OL10KRTHDSIEC, OL10KRTHDSIECTAA, OL10KRTHDS, OL10KRTHDSTAA, OL10KRTHDTAA, OL10KRTHDTW.
Source: ENERGY STAR certified uninterruptible power supplies dataset, US EPA, record 2402423, data build 2026-09-29. Figures are as the maker certified them. How we use this data.
Other makers
Machines comparable to the OL10KRTHD
Certified UPS units from other makers within 25% of its VA rating.
| Model | Capacity | Topology | Efficiency | Runtime @ 50% |
|---|---|---|---|---|
| Eaton 9PX11KPM | 11 kVA / 10 kW | Double Conversion | 94.9% | 10 min |
| Delta RT-11K3P-LV | 11 kVA / 11 kW | Double Conversion | 94.1% | 15 min |
| Eaton 9PX11KIRTNG2 | 11 kVA / 11 kW | Double Conversion | 97.0% | 9 min |
| Eaton 9PX11KG2-L | 11 kVA / 11 kW | Double Conversion | 97.4% | 16 min |
| Delta RT-10K | 10 kVA / 10 kW | Double Conversion | 95.2% | 12 min |
| Liebert GXT5-10KIRT5UXLN | 10 kVA / 10 kW | Multi-Mode Double Conversion | 95.1% | 7 min |
CyberPower
More CyberPower UPS battery backups
| Model | Capacity | Topology | Efficiency | Runtime @ 50% |
|---|---|---|---|---|
| AVRG1000LCD | 1,000 VA / 530 W | Line Interactive | 98.6% | 10 min |
| BL1250U2 | 1,200 VA / 800 W | Line Interactive | 98.7% | 11 min |
| BL1450U | 1,200 VA / 800 W | Line Interactive | 98.7% | 11 min |
| BRG1000AVRLCD | 1,000 VA / 600 W | Line Interactive | 98.5% | 9 min |
| BRG1500AVRLCD | 1,500 VA / 900 W | Line Interactive | 98.6% | 12 min |
| BRG1500AVRLCD2 | 1,500 VA / 900 W | Line Interactive | 98.8% | 11 min |
| CP1000PFCLCD | 1,000 VA / 600 W | Line Interactive | 98.8% | 9 min |
| CP1000PFCLCDa | 1,000 VA / 600 W | Line Interactive | 99.3% | 8 min |
