UPS battery backupsENERGY STAR certified

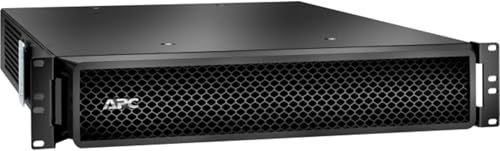

APC Smart-UPS SRT 5000VA RM 208V TAA
5,000 VA / 4,800 W multi-mode double conversion UPS, model number SRT5KRMXLTUS.
Capacity
5,000 VA
4,800 W real power
Topology
Multi-Mode Double Conversion
Efficiency
94.4%
weighted, as tested
Runtime @ 50%
13 min
4 min at full load
A UPS has two ratings and the lower one is the limit. This unit is rated 5,000 VA and 4,800 W, so the equipment plugged into its battery outlets should draw no more than about 3,840 W if you want the usual 20% headroom. How to size a UPS.
Its weighted efficiency of 94.4% compares with a median of 94.6% across 98 certified units within 25% of its capacity. With nothing plugged in it still draws 63.9 W, about $73 a year at 13¢/kWh just to stand ready.
- Maker
- APC
- Model
- APC Smart-UPS SRT 5000VA RM 208V TAA
- Model number
- SRT5KRMXLTUS
- Apparent power rating
- 5,000 VA
- Real power rating
- 4,800 W
- Power factor
- 0.96
- Topology
- Multi-Mode Double Conversion
- Intended use
- Commercial
- Battery
- Valve Regulated Lead-acid Battery
- Runtime at 50% load
- 13 min
- Runtime at 100% load
- 4 min
- Battery warranty
- 2 yr
- Weighted efficiency
- 94.4%
- Efficiency at 25 / 50 / 75 / 100% load
- 92.4% / 94.3% / 94.5% / 94.4%
- Input power at no load
- 63.9 W
- Outlets
- 8 (8 battery + surge, 0 surge only)
- Rack mountable
- Yes, 3U
- Rated input voltage
- 208-240 V
- Rated output voltage
- 208-240 V
- Connections
- Serial Port,USB Port,Ethernet
- Size (H x W x D)
- 130 x 432 x 719 mm
- Maker take-back program
- Yes
- On the market since
- May 2018
- ENERGY STAR certified
- 28 Dec 2018
Certified under the same record
The maker lists these as the same machine or a variant of it: APC Smart-UPS SRT 5000VA RM 208V TAA Factory Serviced, SRT5KRMXLTUSW, Std Exch APC Smart-UPS SRT 5000VA RM 208V TAA, SRT5KRMXLTUSQ.
Source: ENERGY STAR certified uninterruptible power supplies dataset, US EPA, record 2333250, data build 2026-09-29. Figures are as the maker certified them. How we use this data.
